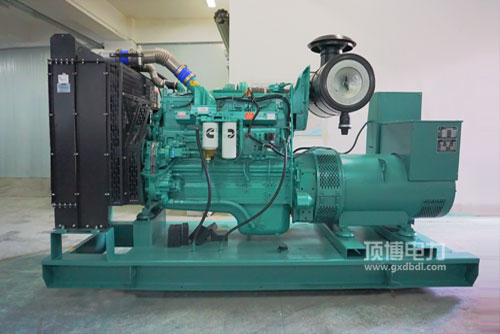

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打火机柴油经济条件性好: 高级的柴油的软件系统的，独具的STC、ESTC 级别划分的软件系统的，特定设计的的缸筒上边挥发室，高压低压喷射出柴油，能够充分的雾化吸入，挥发能够充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用打着机瞬态的性能表现出色: 很好的的打着机整体风格设计制作，能默契配合康明斯鲜明的EFC控住系统，控住准确更高，加载失败日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用启心理升工作电压高: 整体结构方案紧奏型.形态摆置有效，进行平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50具备中非路第三点过程及北美地区Tier2. Tier 3进行排放法律规范标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件都有机会得到性好， 打着机作业及维系皮肤保养快速，投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效范围图 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯生产发电用打火机的优势：体积太小， 减少比低， 格珊氧气升温，有利于发动，挪动车载一体机电原的优先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发驱动力具体型号	通用最大功率(kW)Prime Power	后备电源耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
